Specification of High Speed Sand Grinding Spindle

Type Color Lubricant Adapter A (∅) B (mm) C (mm) D (mm) rpm Diameter (∅)
FA-90-800-01-F None Grease DV-26 90 265 - 318.5 8000 65 / 150
FA-90-800-01 Green DV-22 90 245 - 297 8000 65 / 150
FA-90-1500-01 Red DV-16 90 245 - 297 15000 35 / 70
FA-90-2000-01 Gold Grease / Oil gas DV-14 90 245 60 294 20000 24 / 40
FA-90-3000-01 Blue DV-10 90 242.5 60 292.6 30000 15 / 25
FA-90-4000-01 Purple DV-8 90 242.5 60 292.6 40000 12 / 16
FA-90-5000-01 Orange DV-7 90 238.5 60 276.5 50000 9 / 13
FA-90-6000-01 Bright black Oil gas DV-5 90 237.7 - 275.8 60000 6 / 8
FA-90-8000-01 Bright black DV-5 90 237.7 - 275.8 80000 6 / 8
FB-70-2000 Gold Grease DV-14 70 244.7 - 293.7 20000 24 / 40
FB-70-3000 Blue DV-10.5 70 242.5 - 287.5 30000 15 / 25
FB-70-1000 Red DV-16 70 245 - 298 10000 45 / 80

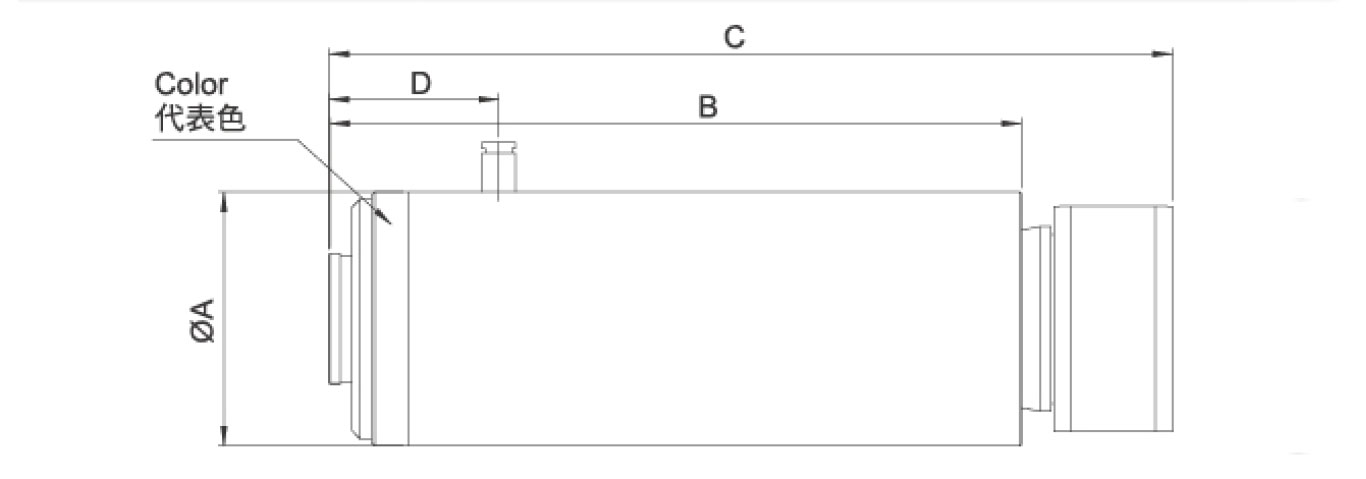

Spindle Dimension

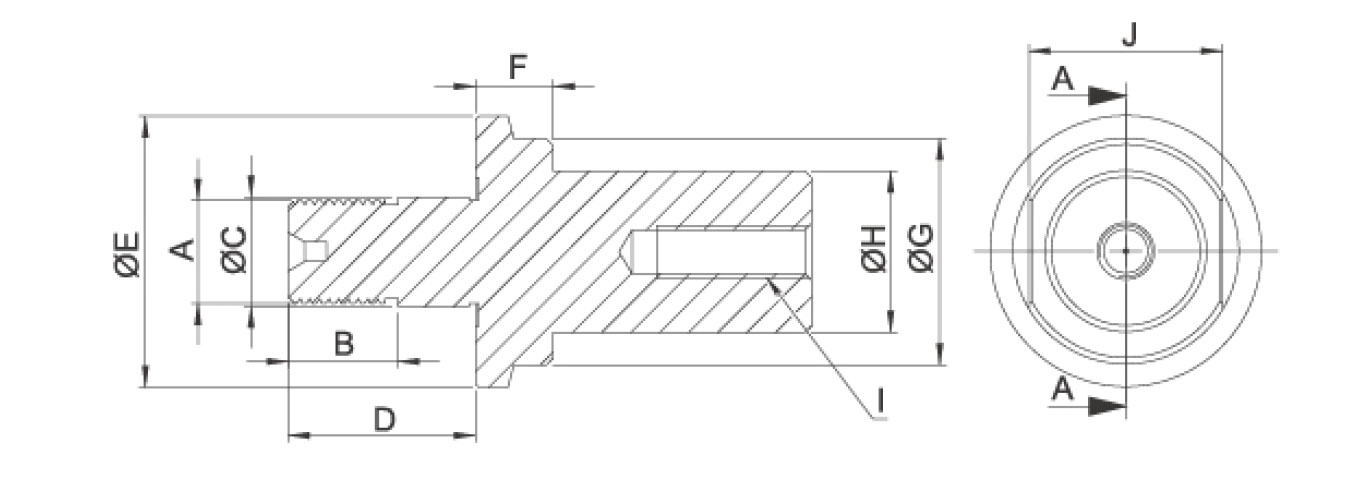

B-B cross-section view

Adapter Specifications

Coupler A B
-0.005
-0.015 		C D × J E F (mm) G H I K L M O
DV-26 M26 × 2P 28 54 ∅ 40 × 100 - 25 41 - 9 48 11 1.5 M10
∅ 60 × 70
∅ 50 × 40
DV-20 M20 × 1.5P 22 20 ∅ 40 × 85 50 22 40 15 22 45 11 1.5 M10
∅ 40 × 60
∅ 40 × 30
DV-16 M16 × 1.5P 17 42 ∅ 32 × 100 35 17 29 14 17 30 9 1.5 M8 × 1.25P
∅ 25 × 60
∅ 25 × 35
DV-14 M14 × 1.5P 15 38 ∅ 24 × 80 30 17 28 12 15 24 7 1.5 M6 × 1.0P
∅ 25 × 60
∅ 25 × 35
DV-10 M10 × 1.5P 10.5 30 ∅ 16 × 40 (M6) 24 15 24 10 10.5 20 7 1.5 M6 × 1.0P
M4 × 0.7P
∅ 13 × 30 (M6)
∅ 10 × 25 (M4)
DV-08 M8 × 1.25P 8.5 24 ∅ 12 × 35 (M6) 18 13 24 10 8.5 18 7 1.5 M6 × 1.0P
M4 × 0.7P
∅ 10 × 30 (M4)
∅ 8 × 24 (M4)
DV-07 M7 × 1P 7.5 21 ∅ 8 × 30 (M4) 15 12 21 10 7.5 16 4.5 1.2 M4 × 0.7P
∅ 7 × 25 (M3)
∅ 6 × 20 (M3)
DV-05 M5 × 0.8P 5.5 20 ∅ 7 × 25 (M3) - 10 18.5 9 5.5 15 3.5 1.2 M3 × 0.5P
∅ 6 × 20 (M3)
∅ 5 × 15 (M3)
